PowerTest 200 Overiew

The PowerTest 200

PowerTest 200 Kit ... $999 Ex GST Buy Now

For $799 ex GST, you get 6 meters. Better value and easier to use than many single function meters, and lower cost of ownership with only one instrument to calibrate:

• Volt Meter
• Insulation Tester
• Continuity Tester
• RCD Tester
• Loop Impedance Tester
• Phase Rotation Tester

The Seaward PowerTest 200 multifunction tester has been designed to meet the needs of experienced electricians, but with safety features and an easy to use interface that makes it a great choice for those new to installation testing.

For a detailed brochure on the PowerTest 200, click: PowerTest 200 Brochure

Key Features

• Voltage measurement up to 440V
• Continuity test with autostart and null facility to zero out lead resistance
• Insulation resistance measurement with 250, 500 & 1000V test voltages
• RCD testing: Trip time, trip current (0.5, 1, 2 and 5 times the rating, dependent on device), auto test and ramp test
• Test RCDs in auto mode and simply recall the test results once finished
• Loop impedance and PSC or PFC readings can be shown on one screen
• Non-trip loop impedance
• Loop impedance - high current with auto start and direct readout of PSC
• Phase rotation test will indicate the correct phase sequence
• Integrated socket probe for easier testing

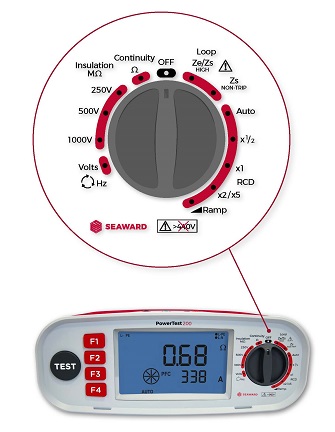

• Large backlight screen improving visibility even in difficult lighting conditions

Protection and Warnings

• Fully protected against damage when accidentally connected across phases
• PowerTest 200’s screen turns from blue to red and an audible warning sounds if it detects mains voltage when conducting a “dead” test

The PowerTest 200 is fully protected against damage when accidentally connected to a wrong test setting, and meets the safety and performance requirements of AS/NZS3017 , as you would expect from Seaward with over 35 years supplying test equipment to keep people safe.

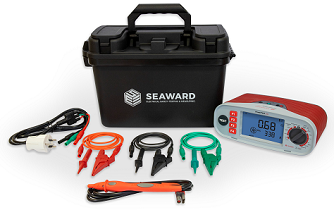

Complete Kit with Hard Carry Case

The PowerTest 200 is supplied with a compete kit of accessories as standard:

• Seaward PowerTest 200 Instrument
• Professional carry case
• Padded neck strap
• Mains lead
• 1.2M black test lead
• 1.2M red test lead
• 1.2M green test lead
• Black crocodile clip
• Red crocodile clip
• Green crocodile clip
• Remote probe with test buttons
• 6 x MN1500 (LR6) (AA) 1.5v batteries
• Spare 1.6A 1000v HRC FF fuse
• User manual

PowerTest 200
Voltage 0 - 440V
Continuity 0.01ohm to 200ohm
Insulation Resistance 250V, 500V & 1000V
RCD Testing trip time and trip current, 10mA, 30mA, 100mA, and 1/2x, 1x, 2x and 5x current.
Non-Trip Fault Loop Impedance
Phase Rotation
Overvoltage Category 300V Cat III
